Welcome to Shanghai Qiao Feng industrial co., LTD's website

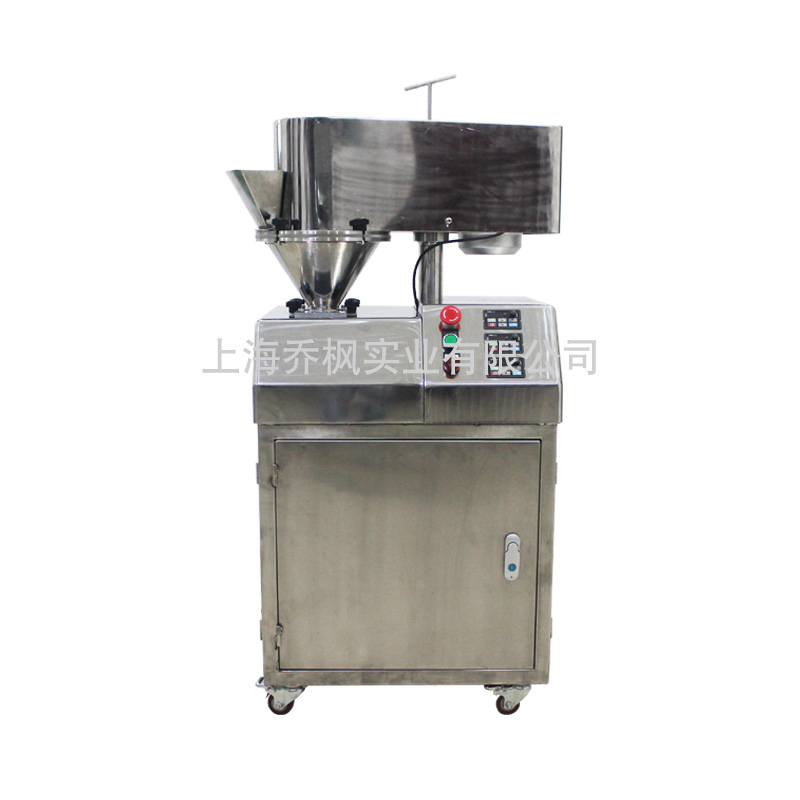

| Device name: | Experimental dry granulator |
| Equipment type: | qfn - gk－70 |
| Throughput: | 20-60kg/h (support customized) |
| Test machine: | Support test making experiment |
| Main uses: |
Medicine: tablet pellet, capsule filling granule and so on. Food: food manufacturing granules, seasoning granules, etc. Plastics: all kinds of plastic forming granules. Chemical industry: catalysts, pigments, detergents and other chemical raw materials and other particles. |
| Application scenario: | Scientific research, chemical industry, food, pesticide, medicine, biological industry, etc. |
| Is it guaranteed? | National three year warranty |
| Telephone: | 17317246351 |
I. main uses:
Medicine: tablet pellet, capsule filling granule and so on.
Food: food manufacturing granules, seasoning granules, etc.
Plastics: all kinds of plastic forming granules.
Chemical industry: catalysts, pigments, detergents and other chemical raw materials and other particles.
Working principle: the machine is a new equipment that directly uses powder material to make granules from the crystal water in the material. The machine is novel and reasonable in structure, stable and reliable in performance, convenient in cleaning and maintenance. The granule made of this mechanism can be used as tablet agent, granule, capsule and so on. The machine is mainly used for granulation in pharmaceutical, food, chemical and other industries. It is especially suitable for granulation of materials which can not be solved by wet process.
Two, product characteristics:
1, dry powder particle density is uniform, solubility is good, the rate of granulation is high.
2. Special feeding structure ensures effective feeding.
3. Roll water circulation cooling ensures that there will be no phenomenon of material sticking.
4. There is no need for wetting agents such as water or ethanol, no need for secondary heating and drying, less process, high efficiency and low cost.
5, the use of advanced electro-hydraulic, simple and reliable operation, high degree of automation.
6. The sealing operation is free from contamination and meets the hygienic requirements of medicines.
7. It is especially suitable for granulation of materials which can not be solved by wet method.
Three, the product is actually taken:
Four, equipment type and parameters:
|
Model |
Throughput |
Feed grain size |
Working pressure |
Motor power |
Outline size (length * width * height) |
weight |
|
gk－70 |
20-60kg/h |
0.4-6mm |
198kn |
7.15kw |
1380*850*2200mm |
1600kg |
|
gk－120 |
60 - 200kg / h. |
0.4-6mm |
294kn |
13.75kw |
1850*1100*2600mm |
2000kg |
|
gk－250 |
80 - 300 kg / h. |
0.4-6mm |
294kn |
25kw |
2080 * * 2920mm 1240 |
3000kg |
